I. Device Introduction:
The device is mainly used for stripping the outer sheath of large square high-voltage cables, cutting and flipping screens, and stripping inner insulation layers in production.

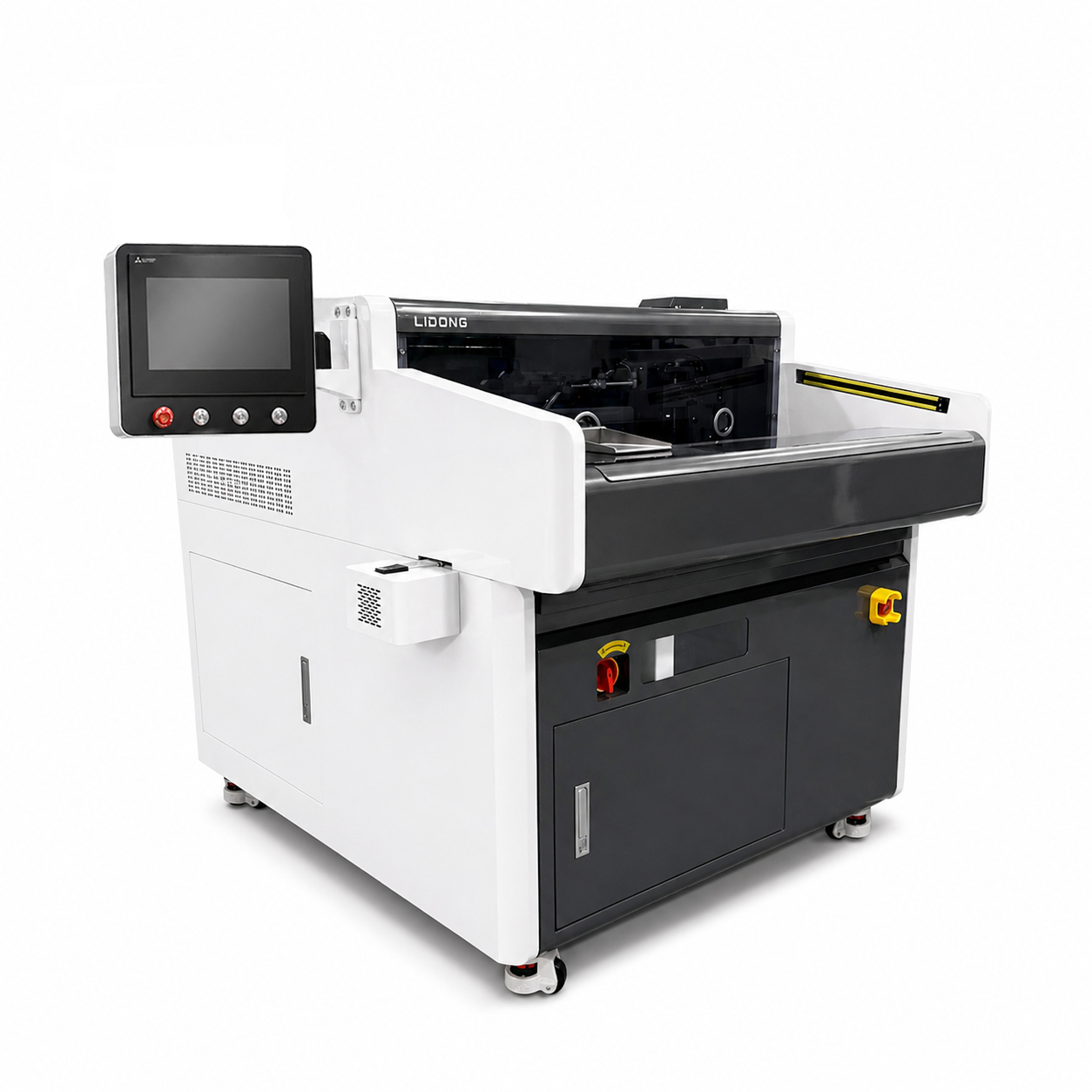

II. Sample Pictures
Model | LDA-BFQ90 |
Device Function | Stripping of outer insulation, cutting of shielding net, flipping of shielding net, stripping of inner insulation layer |
Processing Range | 35 square - 70 square |
Outer Insulation Stripping Length | 0-80mm (customizable for extra length) |
Shielding Net Cutting Length | 0-80mm (customizable for extra length) |
Shielding Net Flipping Length | 5-30mm (customizable for extra length) |
Inner Insulation Stripping Length | 0-50mm (customizable for extra length) |
| Cycle Time | 20s-35s (varies depending on product specifications) |
| Changeover Time | ＜10min |
| Program Storage | 99 Sets |
| Control System | PLC Control |
| Digital Capability | MES System |
| Display | 10” True Color Touchscreen |
| Operation Safety | Safety Light Curtain |
| Blade Material | High-Quality Imported Alloy Steel |
| Power Supply | AC220V / 50Hz |
| Power | 4.0KW |
| Air Pressure | 0.5 - 0.7 MPa |
| Dimensions (L×W×H) | 1185×1700×1285 |
